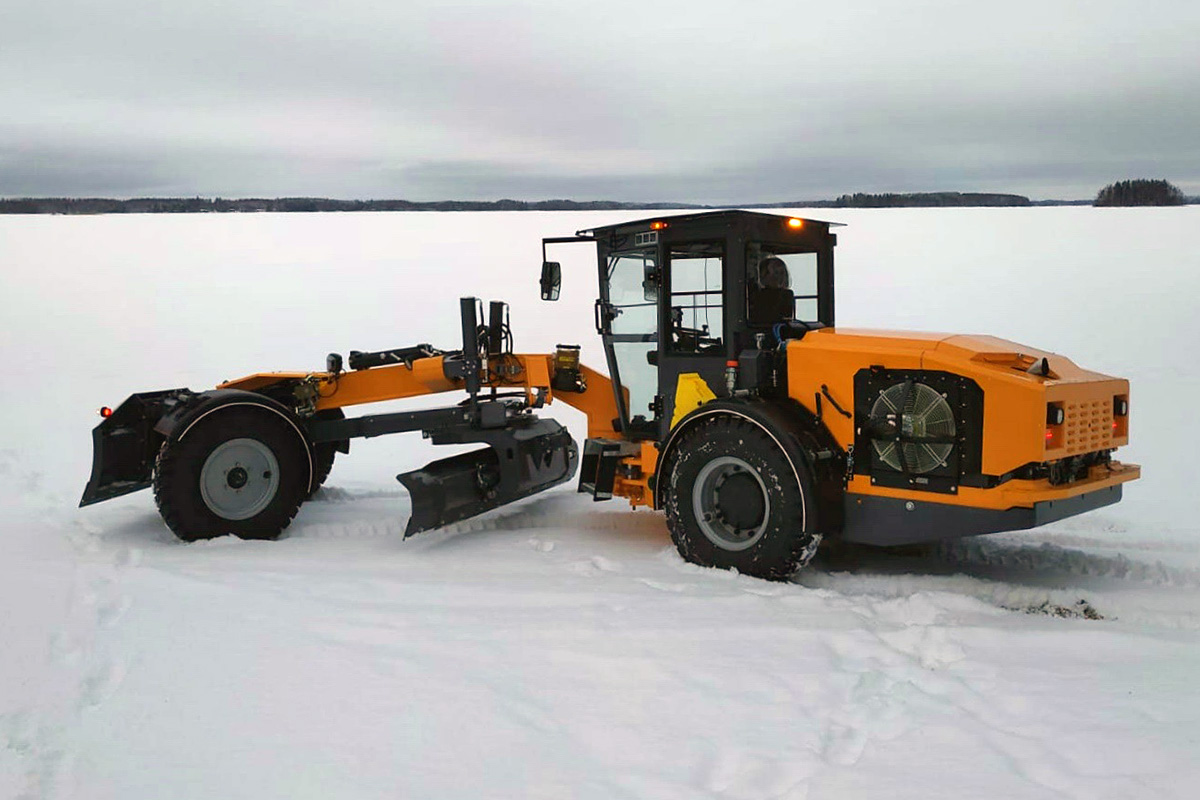

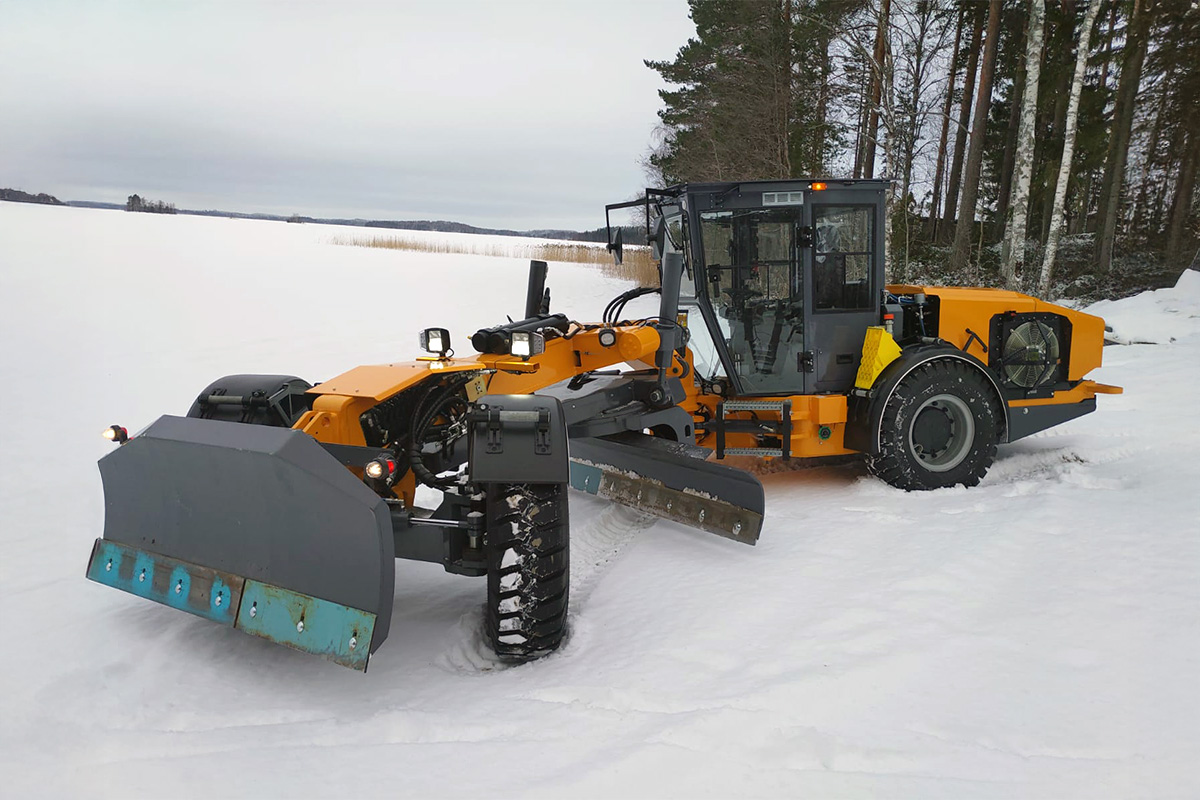

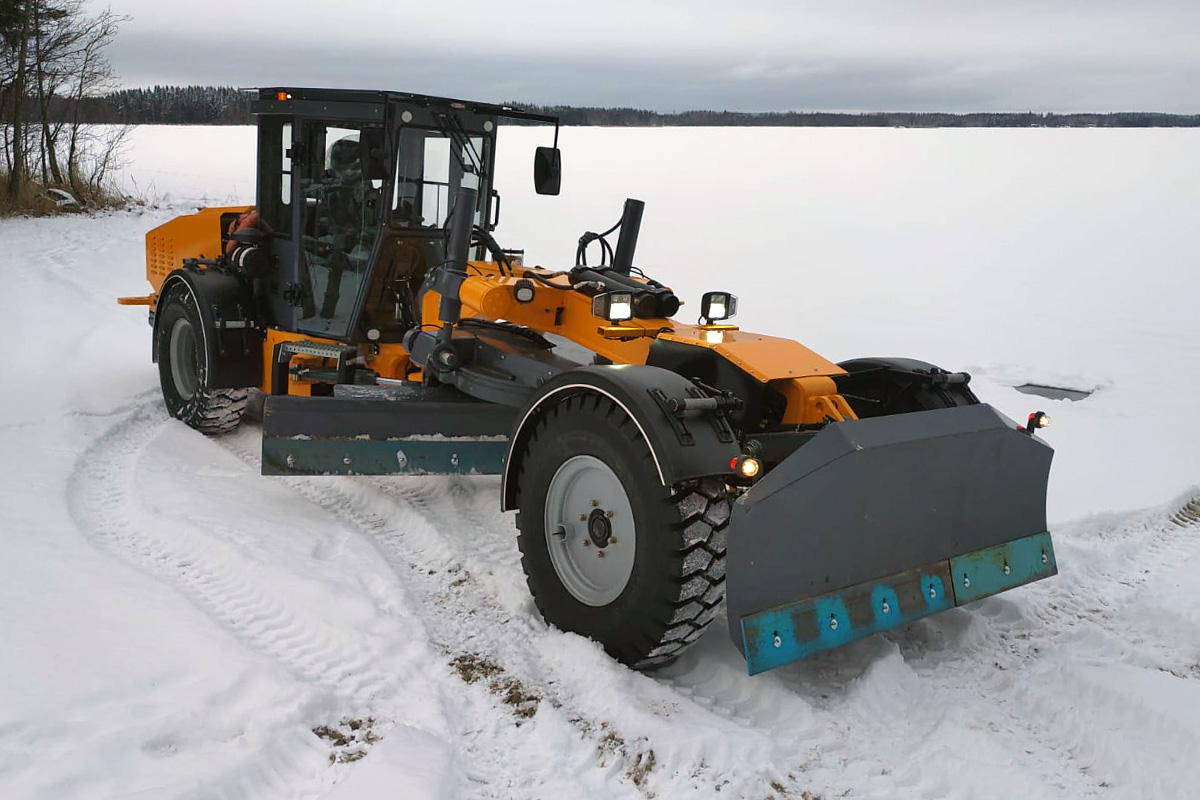

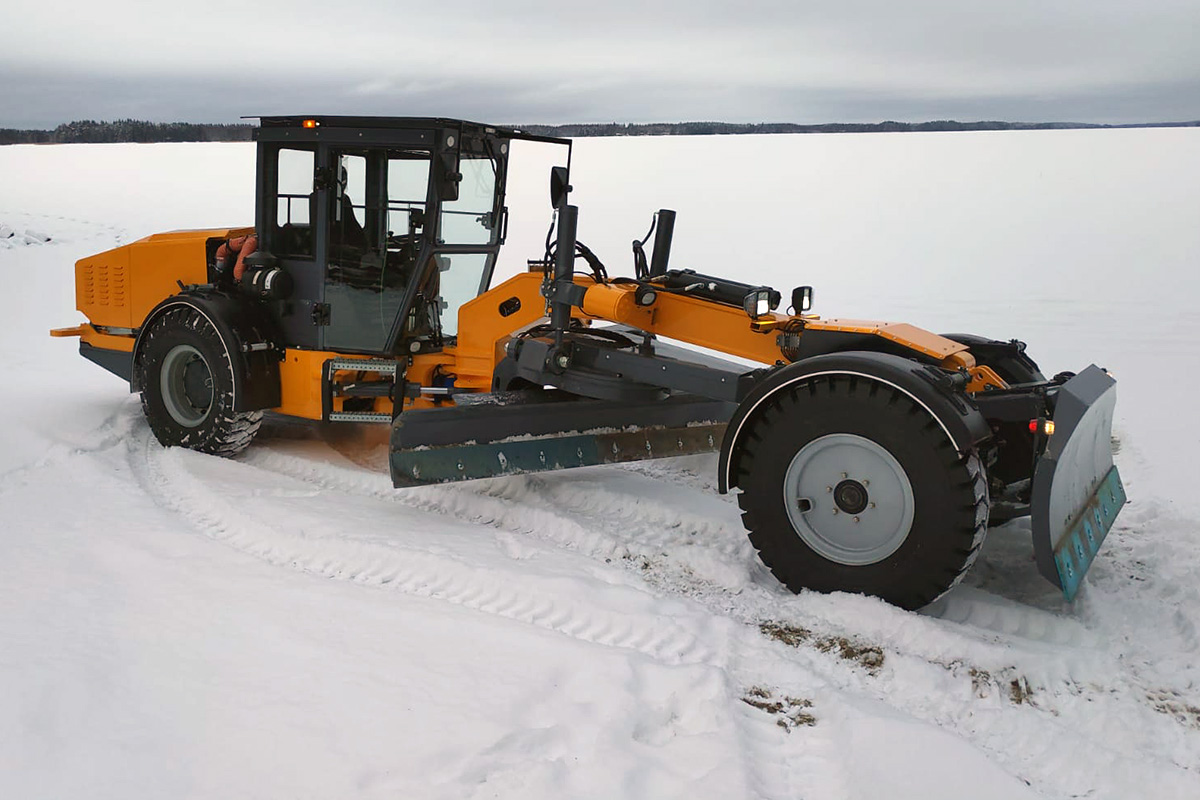

Veekmas FG 7 S

Veekmas FG 7 S is a motor grader model designed for tight and arduous operating conditions in different earthwork and construction tasks. This unique low-profile motor grader has been manufactured paying attention to its high performance and low operating costs.

Power and accuracy

Its driving capacity is exceptional for such a small motor grader as its all-wheel drive system is exceedingly efficient. The frame articulating joint is situated in front of the cabin, which eases turning and reduces outer turning radius. The middle blade can make a circle whose diameter is 165 cm.

Increased ability for touch conditions

Its highly strengthened main frame and chassis together with its wear-resistant components make 10 ton Veekmas FG 7 S ideal for operating in tight conditions. The technical solutions make it easier to operate effectively in small dimensional and sharply curved circumstances. The motor grader has low oil pressure and advanced hydraulic system.

Comfortable cabin

The roomy ROPS and FOPS certified cabin offers safety and increased operating comfort. The instrumentation and the controls are conveniently located and readily visible for ease of operation. These features coupled with the exceptional maneuverability enable the motor grader to be readily operated whilst still maintaining its excellent operator visibility. The design of the engine bonnet allow an excellent operator visibility backwards for safe reversing.

High standard of equipment

The motor grader has as standard, for example, front blade, adjustable and air cushioned operator seat as well as openable side windows on both sides on a cabin. There is a joystick-steering facility on the motor grader to be used when operating the machine on working gears. Among other things CD-player, automatic air-condition and blade teeth frame with teeth are available as option.

High-quality components and easier maintenance

High quality is reflected in the whole life cycle of the product. Meaningful placement and good availability of components as well as openable engine bonnet facilitate maintenance. In comparison with more lightly constructed motor graders, need for spare parts and repairs is substantially reduced due to the heavy construction and the high quality components.

Technical specification


Weight (excluding optional equipment and extra weights) 9,800 kg


Length 7,700 mm
Width 2,200 mm
Height 2,460 mm
Width 2,220 mm
Wheel base 4,800 mm
Outer turning radius (without a front blade) 4,450 mm
Outside turning radius (with a front blade) 4,950 mm


Alternative 1:

Mercedes-Benz OM 904 LA
90 kW / 2,200 rpm
Electronic control
Warning light for overheating and low oil pressure
Openable engine bonnet

Alternative 2:

Deutz TCD 3.6 L4
90 kW / 2,200 rpm
EU Stage IV
Electronic control
Warning light for overheating and low oil pressure
Openable engine bonnet


Heavy duty hydrostatic drive system with electrically controlled hydraulic drive pumps / hydraulic drive motor
All-wheel drive
Max transfer speed 25 km/h

Front Axle:

Hydraulic hub motors

Rear Axle, Bogie:

Single rear axle
Planetary gears
100% differential gear lock
Dual-circuit hydraulic pressure operated oil-immersed disc service brakes
Low oil pressure warning system
Spring Applied Hydraulic Release (S.A.H.R.) parking and emergency brakes, effect on rear axle
Four-wheel drive


Fuel tank 150 litres


Iqan-controlled, load sensing system with automatically self-adjusting hydraulic output
Pre-control, electronically pre-controlled valves


Hydrostatic front wheel steering
Hydrostatic side impact protected frame steering ±40°


Size 12.00–20
Sliced tread pattern blocks

Middle Blade:

Length 3,050 mm (10 ft)
Blade cutting edges
Material thickness 20 mm
Height 440 mm + 60 mm
Max ground clearance 330 mm
Blade rotation by hydraulic cylinders 2 pcs
Blade turns 65° to the right and 65° to the left
Overload protection

As optional:

Front blade
Length 2,000 mm
Hydraulic control
