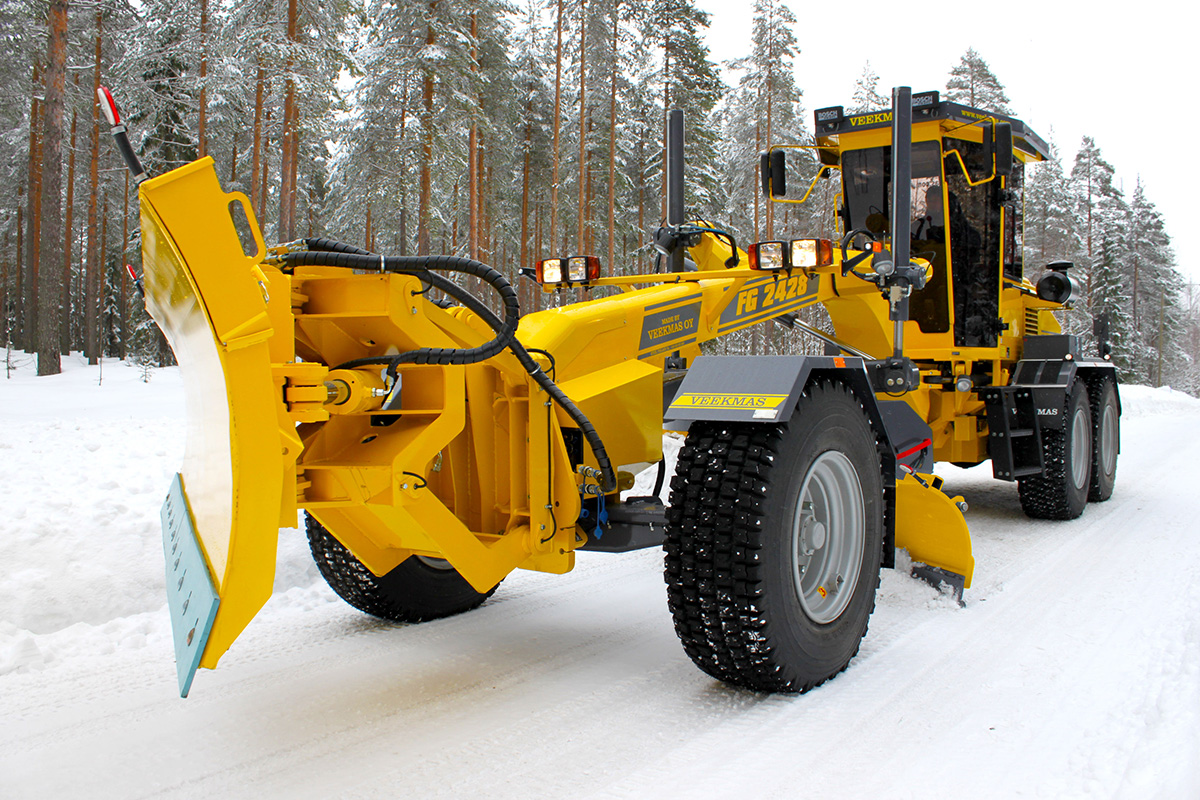

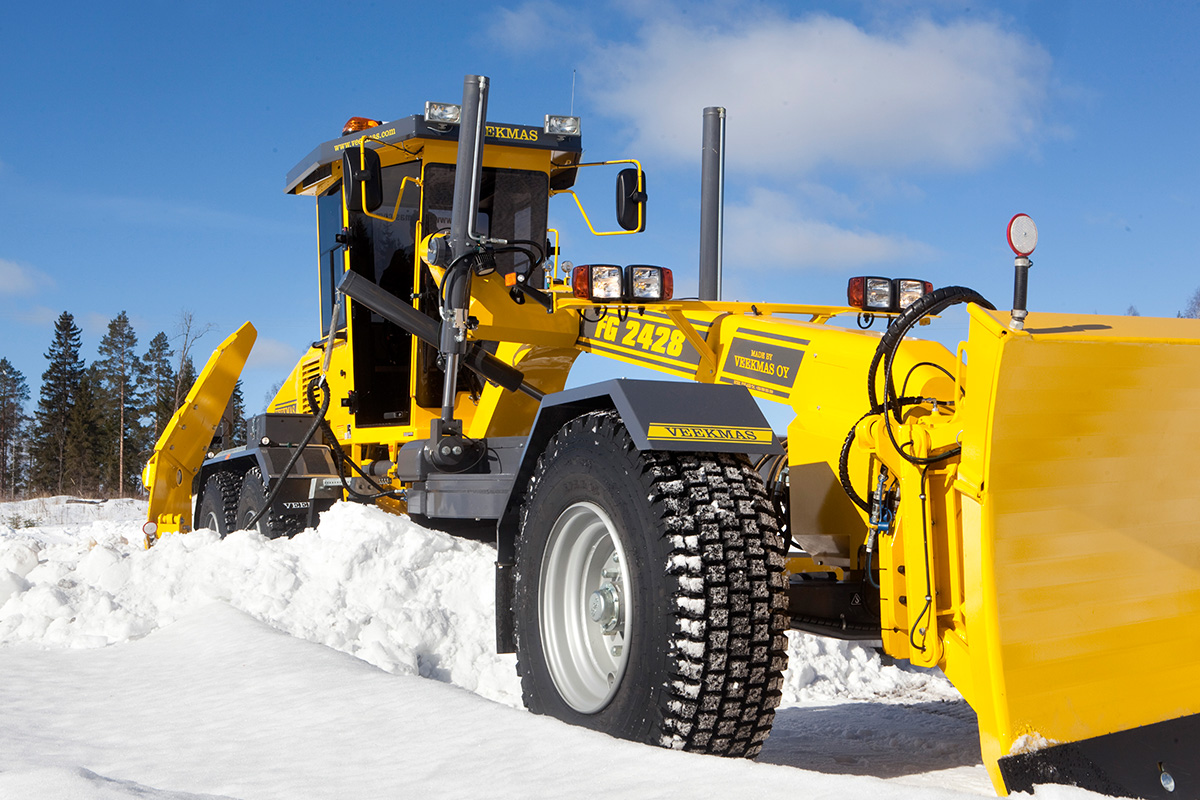

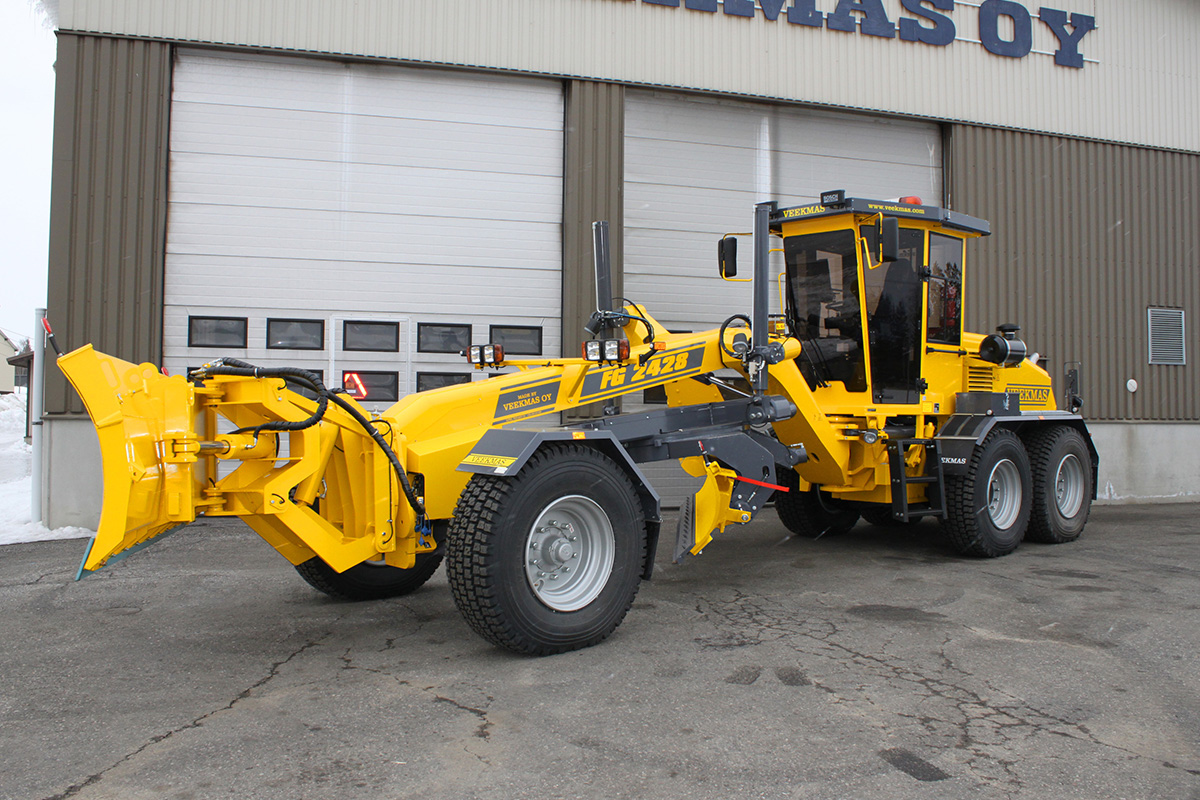

Veekmas FG 2428

Veekmas FG 2428 is the resultant masterpiece of the long period of thorough practise and experimental design work which has proved to be a great success on the market. It has been developed, keeping an eye on the severe and demanding climate conditions prevalent in the Nordic countries. That is why its mechanical efficiency, ergonomically designed and comfortable operating features, and finally the superior working results, are incomparable.

Renewed Veekmas FG 2428

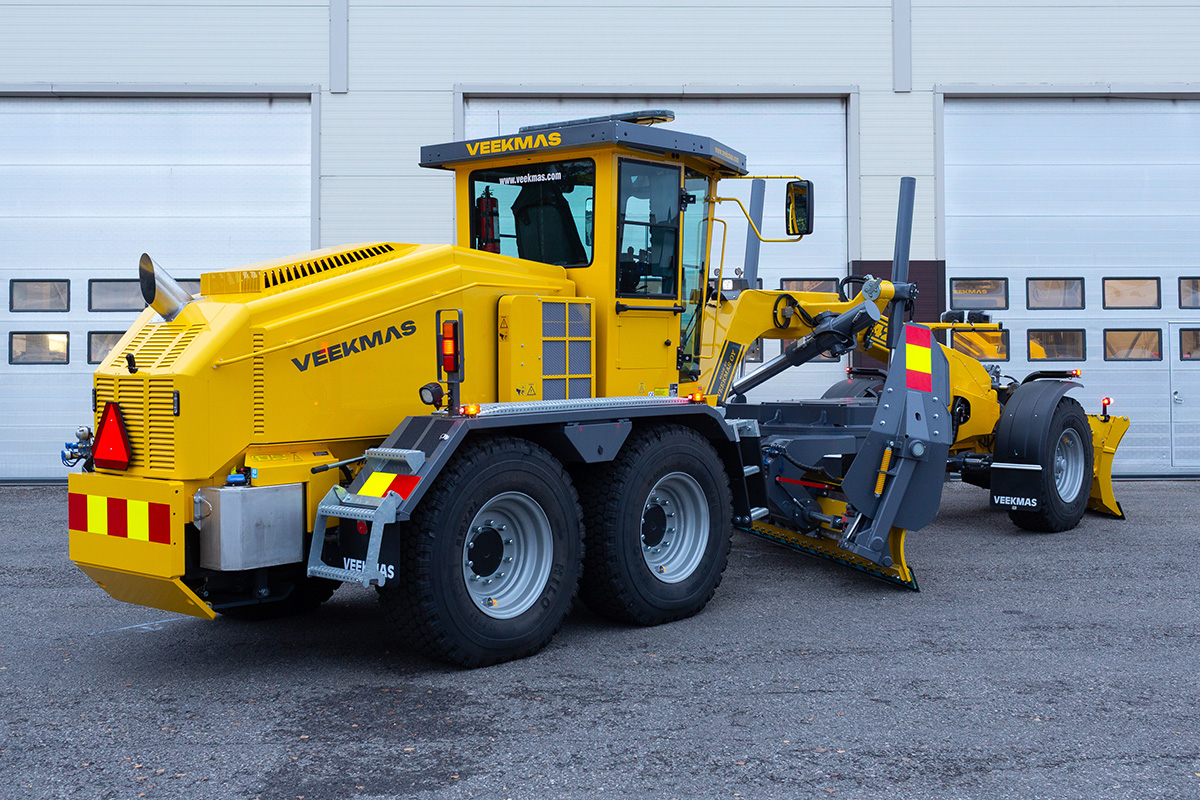

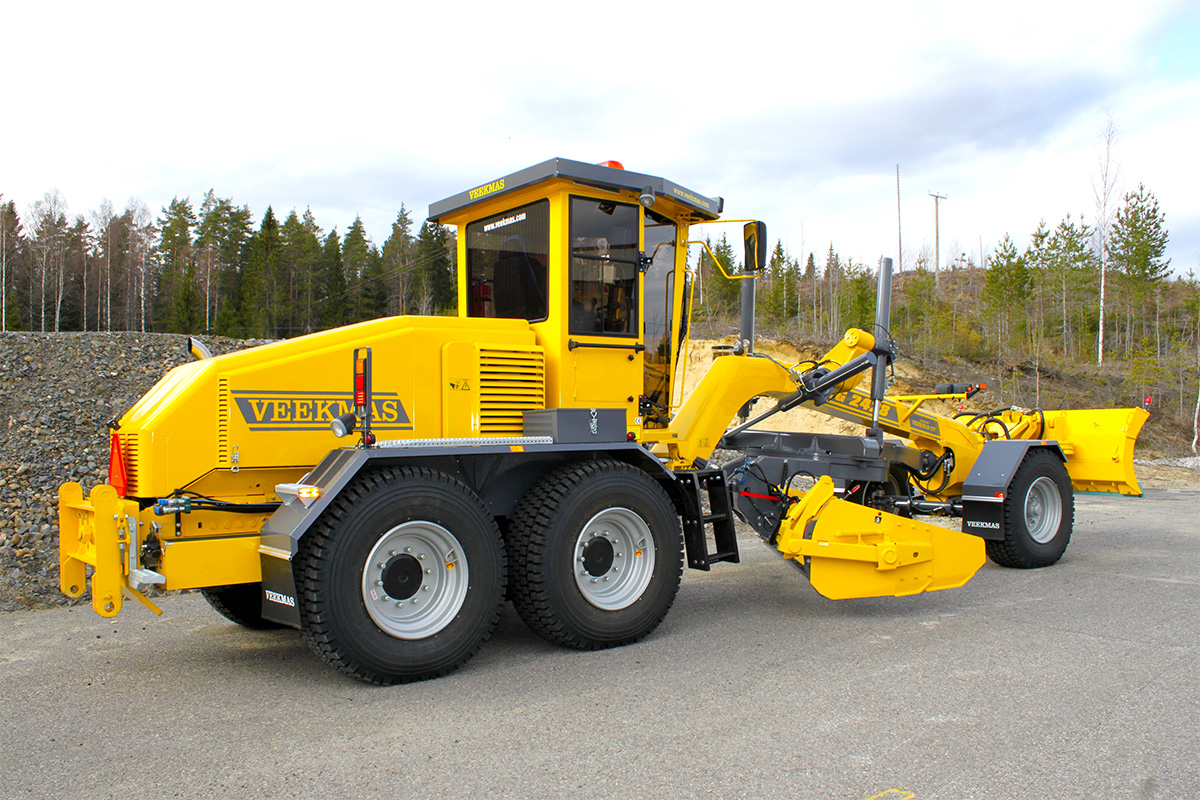

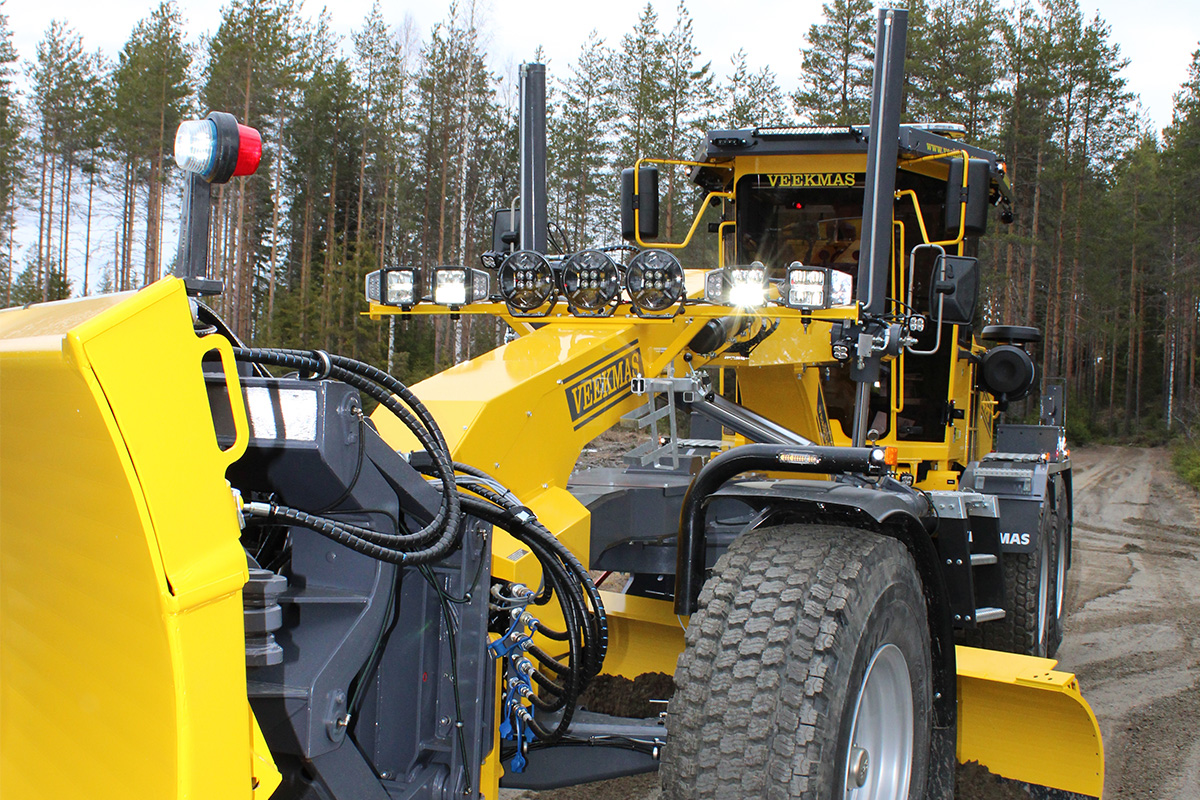

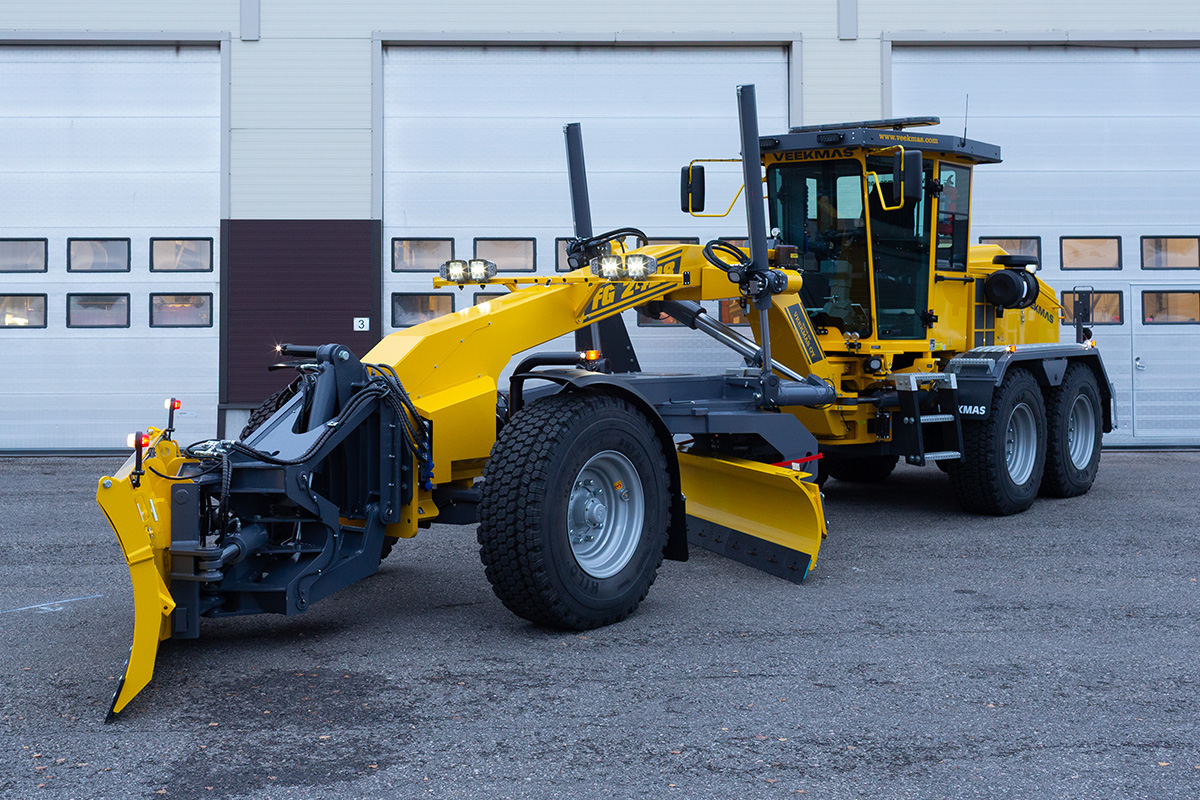

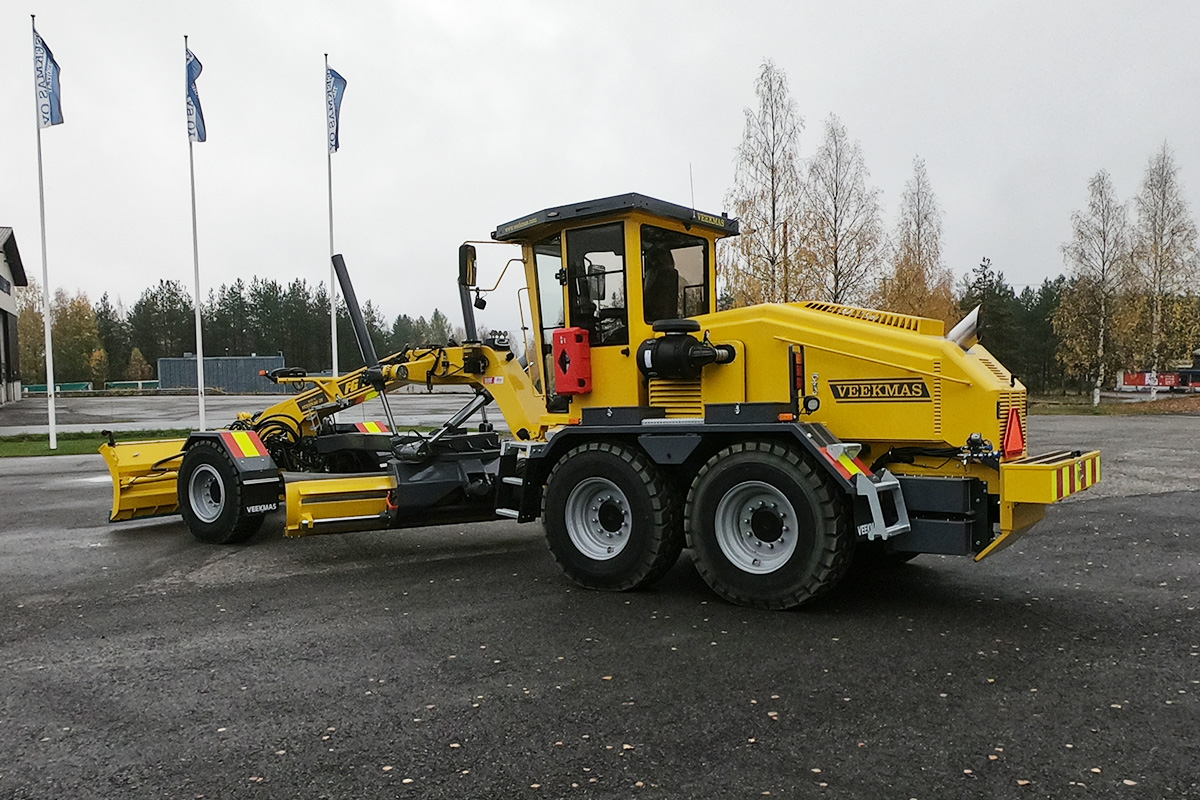

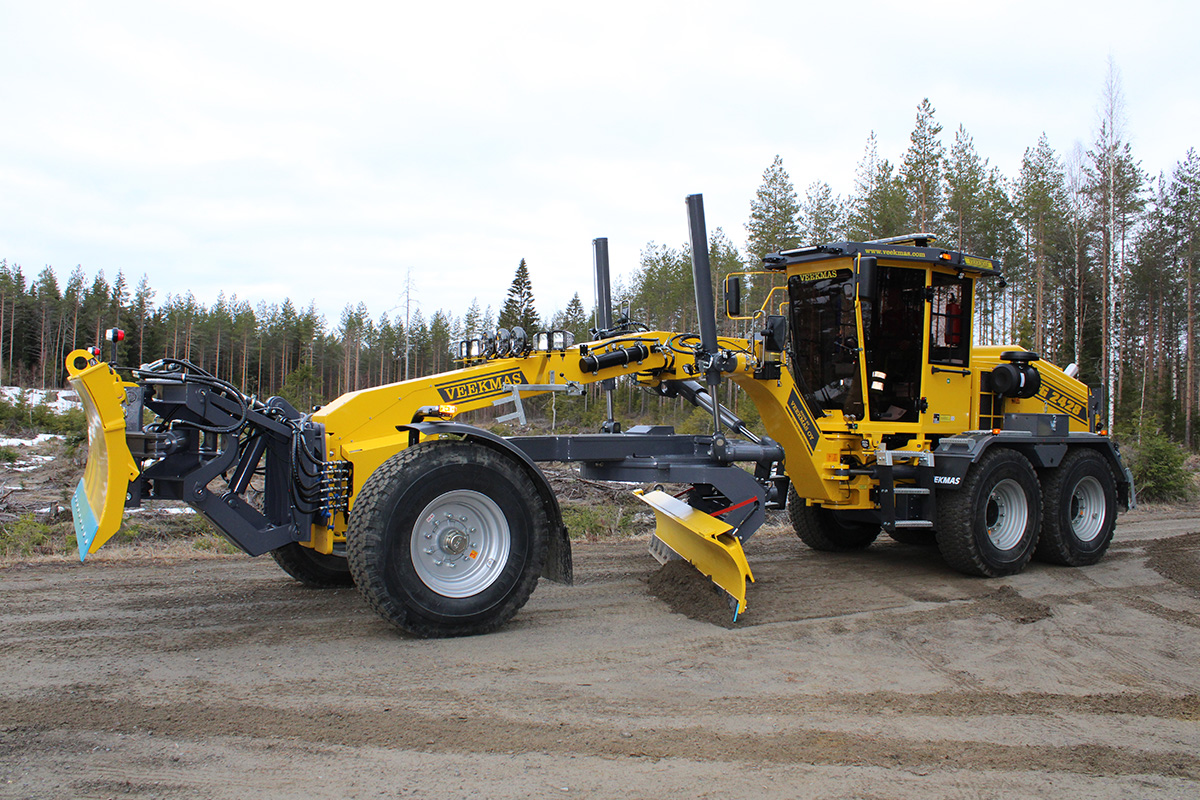

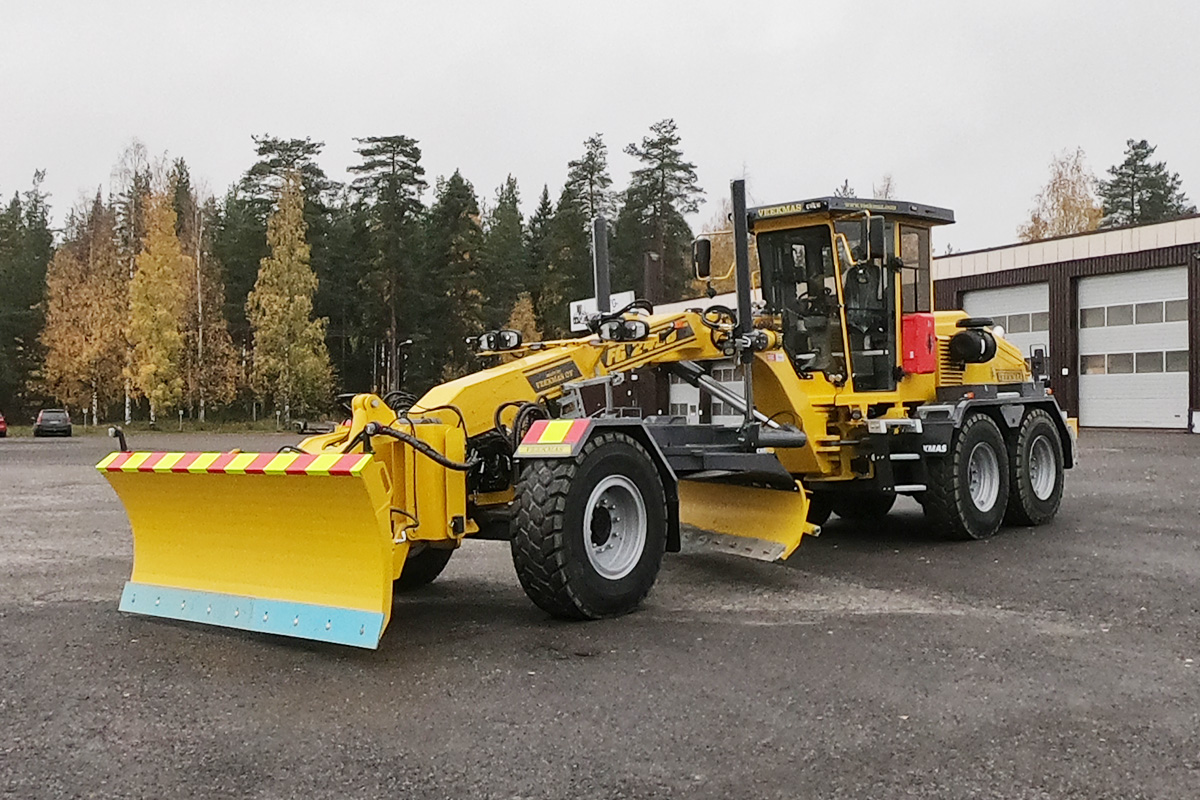

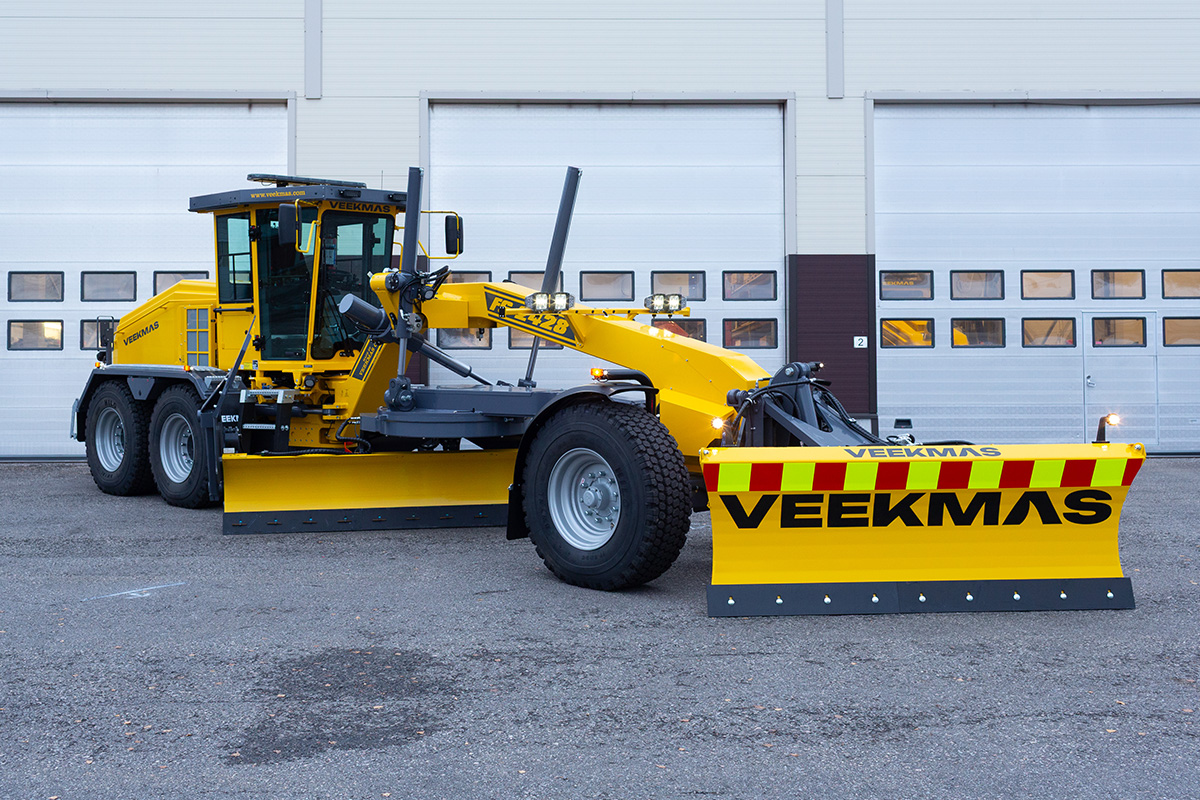

The renewed four-wheel drive Veekmas FG 2428 and six-wheel drive Veekmas FG 2428 6WD have strong engines as well as  redesignad main frames and engine hoods. The moldboard has been renewed, whereby the middle blade ground clearance is better and the blade movements are larger than before. The steerability and the braking capacity have been substantially improved. Furthermore, the motor grader now has plenty of led lights as standard for increased safety.

Renewed Iqan machine control and monitoring system

The electronic can-bus based Iqan machine control and monitoring system allows a diversified blade automatism and separate settings for different operators. The setting adjustments can also be made by the factory. The fault finding process is also facilitated, thanks to the informative fault codes and remote access to the machine. The middle blade rises automatically when reversing with floating activated. The windrow spreader also rises automatically from operation when reversing. The control of the output of the electrically pre-controlled hydraulic system is stepless and takes place by propo valves. The operator can adjust the maximum speed of the hydraulics according to his needs – especially in conditions which require special accuracy.

Advanced reversed transmission system

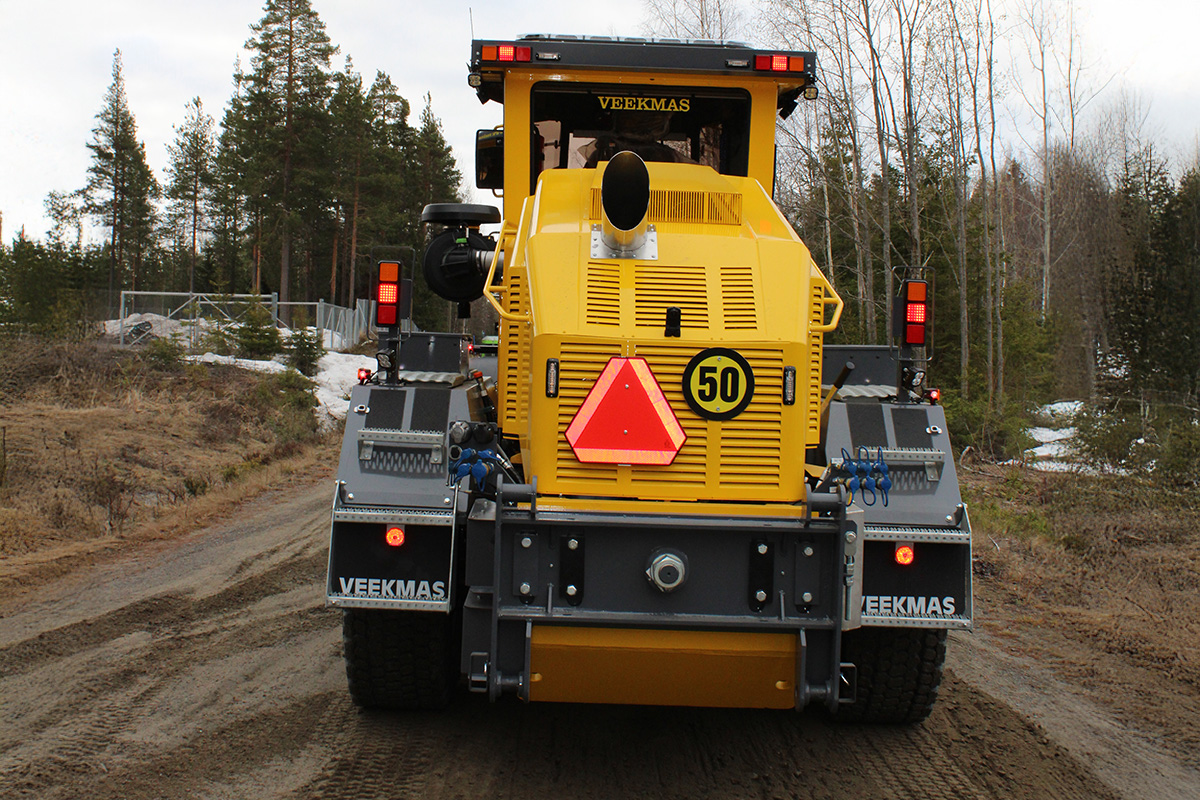

Veekmas Motor Graders have a reversed transmission system, where the transmission is situated transversally at the back of the motor grader. The solution has several advantages, among other things, a low cabin noise level, easier maintenance, and improved weight distribution. The placing of the transmission and the declining design of the engine bonnet allow excellent operator visibility backwards for safe reversing.

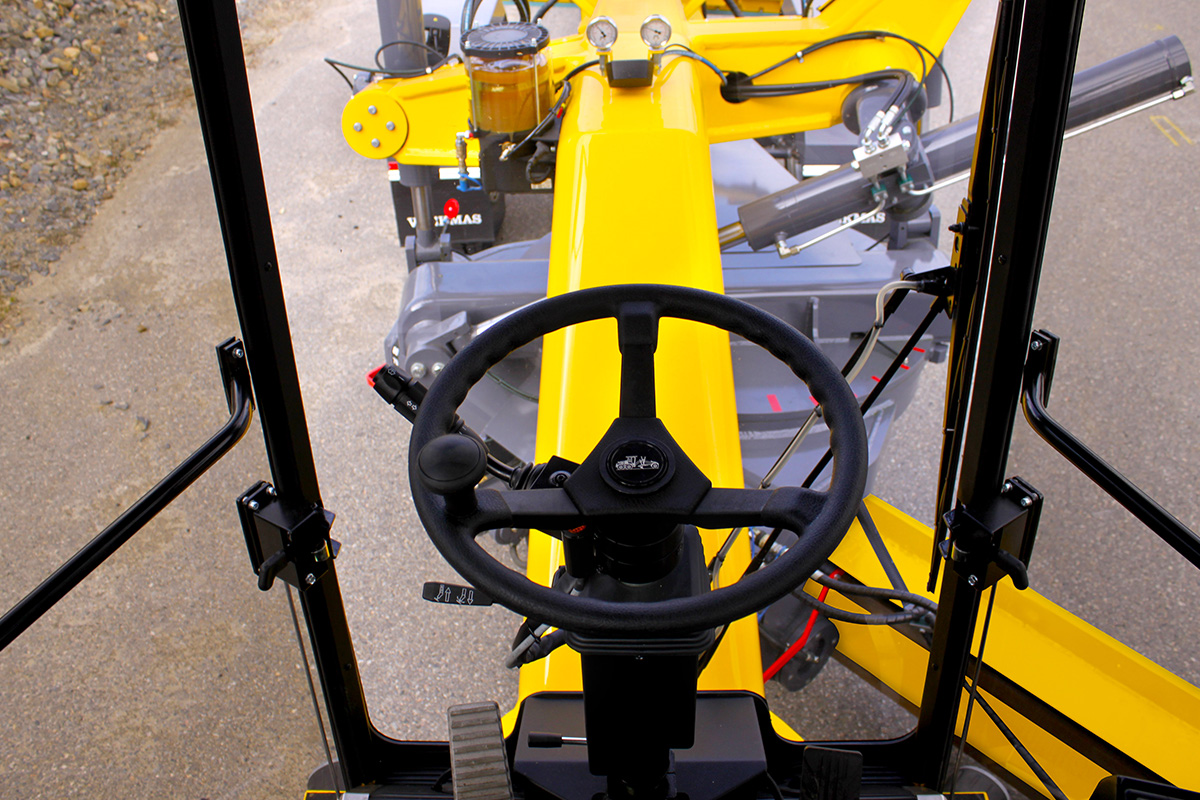

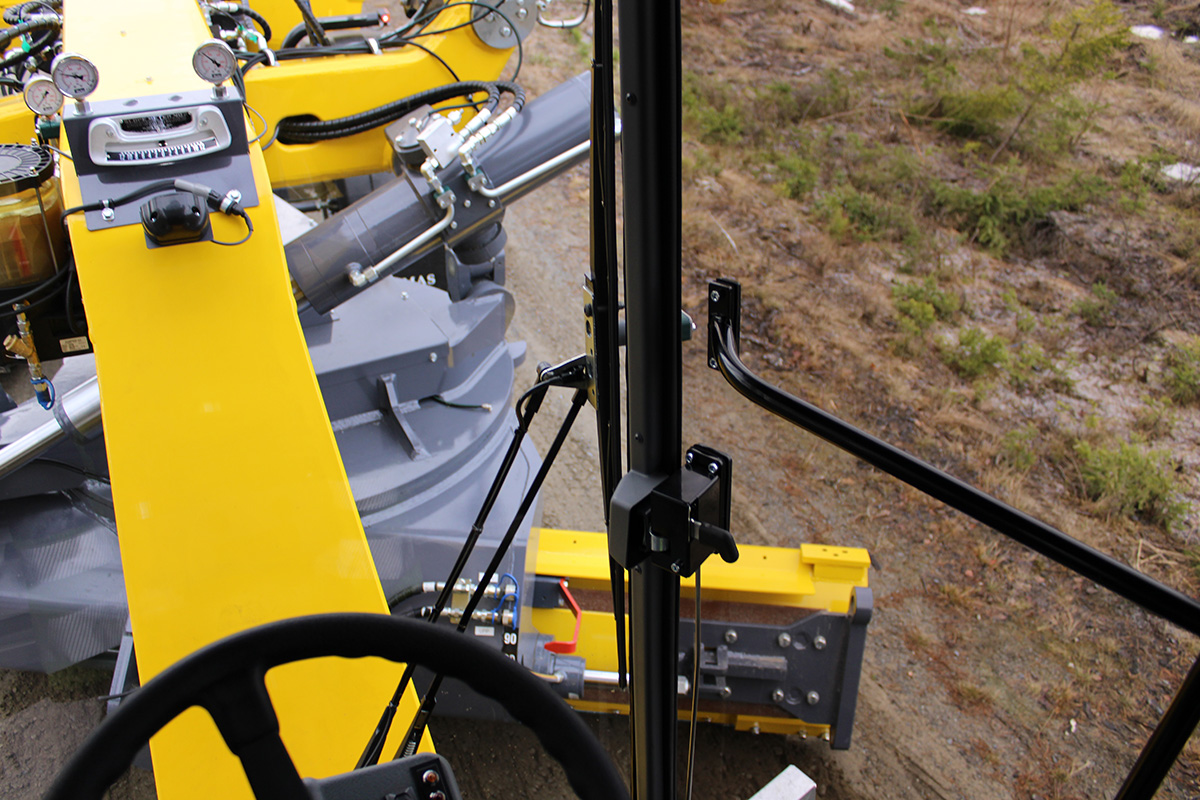

Operator-friendly cabin

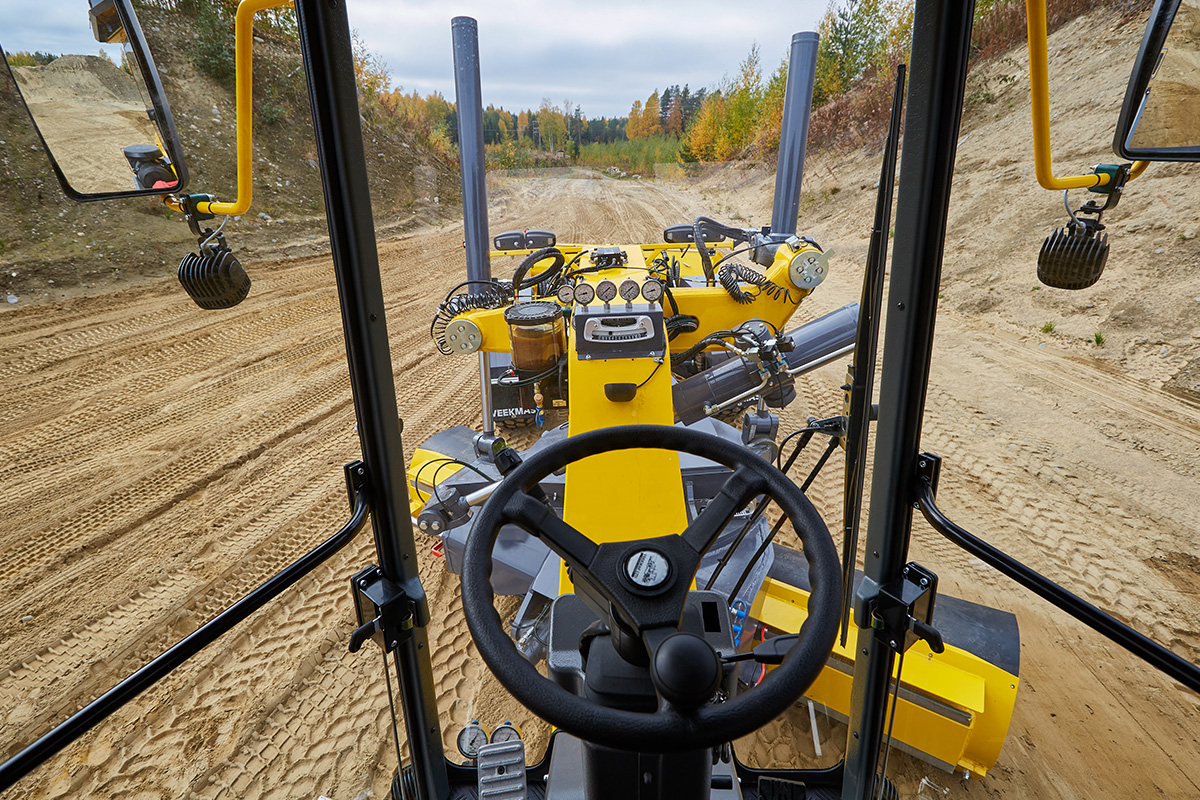

The tiltable ROPS- and FOPS-certified cabin includes as standard, for example, a CD-player, automatic air-condition integrated in the roof, air-conditioned, air-cushioned and heated operator seat, darkly tinted glasses, openable side windows on both sides of the cabin, as well as electrically adjustable and heated rear-view mirrors (in the Nordic countries). In addition to the steering with a steering whee, the front wheels can be steered by joysticks.

Technical specification

Weight:

Weight (excluding optional equipment and extra weights) 20,900 kg
(Veekmas FG 2428 6WD: 21,100 kg)
Rear axle weight 15,200 kg
(Veekmas FG 2428 6WD: 15,200 kg)
Front axle weight 5,700 kg
(Veekmas FG 2428 6WD: 5,900 kg)

Dimensions:

Length 9,800 mm
Width 2,550 mm
Height 3,300 mm (without warning light panel)
Outside turning radius 7.00 m
(Veekmas FG 2428 6WD: 7.10 m)

Engine:

Volvo Penta TAD882VE, 7.7 l
210 kW / 1,700–2,200 rpm
EU State V

Transmission:

Hydrodynamic Ergopower transmission ZF 6WG-210
Gear shift automatic/manual
Torque converter
Converter lock-up automatism
Electronic gear shift and control
Max transfer speed 50 km/h
(Veekmas FG 2428 6WD: front wheel drive operates 100% on 1st and 2nd gears as well as 50% on 3rd and 4th gears)

Noise Level:

External noise level 80.5 dB(A) according to directive 74/151/EEC (distance 30 m)

Front Axle:

FG axle
(Veekmas FG 2428 6WD: driven FG axle with differential gear lock)
(Veekmas FG 2428 6WD: electrically controlled, automatic pressure control / antispinn)

Rear Axle, Bogie:

Thordab bogie
100% differential gear lock
Dual-circuit hydraulic dry-disc service brakes
Low oil pressure warning system
Parking brake, dry disc, effect on cardan shaft
Emergency brake as an option in one brake circuit
Four-wheel drive (six wheel drive as an option)

Tanks:

Fuel tank 400 l

Hydraulics:

Iqan-controlled, load sensing system with automatically self-adjusting hydraulic output
Main hydraulics, axial piston pump
Pre-control, electronically pre-controlled valves
Front wheel drive hydraulics (Veekmas FG 2428 6WD):

  • Variable displacement pumps and wheel motors
  • Max drive pressure 300 bar
  • Max trancion force 3,000 kg

Steering:

Hydrostatic front wheel steering ±51°
(Veekmas FG 2428 6WD: ±50°)
Hydrostatic side impact protected frame steering ±30°
Frame steering follows automatically front wheel steering
Automatic return of frame steering to middle position

Tires:

17.5R25

Middle Blade:

Length 12–13 ft
Blade cutting edges
Height 640+60 mm
Material thickness 25 mm
Blade extent 3,581 mm from wheel outer edge
Max blade side tilt angle on the right side, upwards 50–51° (the corresponding reach of the wheel 2,571–2,224 mm)
Max blade side tilt angle on the right side, downwards 15–23° (the corresponding reach of the wheel 3,183–2,396 mm)
Max ground clearance 650 mm
Hydraulic blade tilt 35–100°
Blade rotation by hydraulic cylinders 2 pcs
Overload protection

Cabin:

ROPS and FOPS certified cabin
